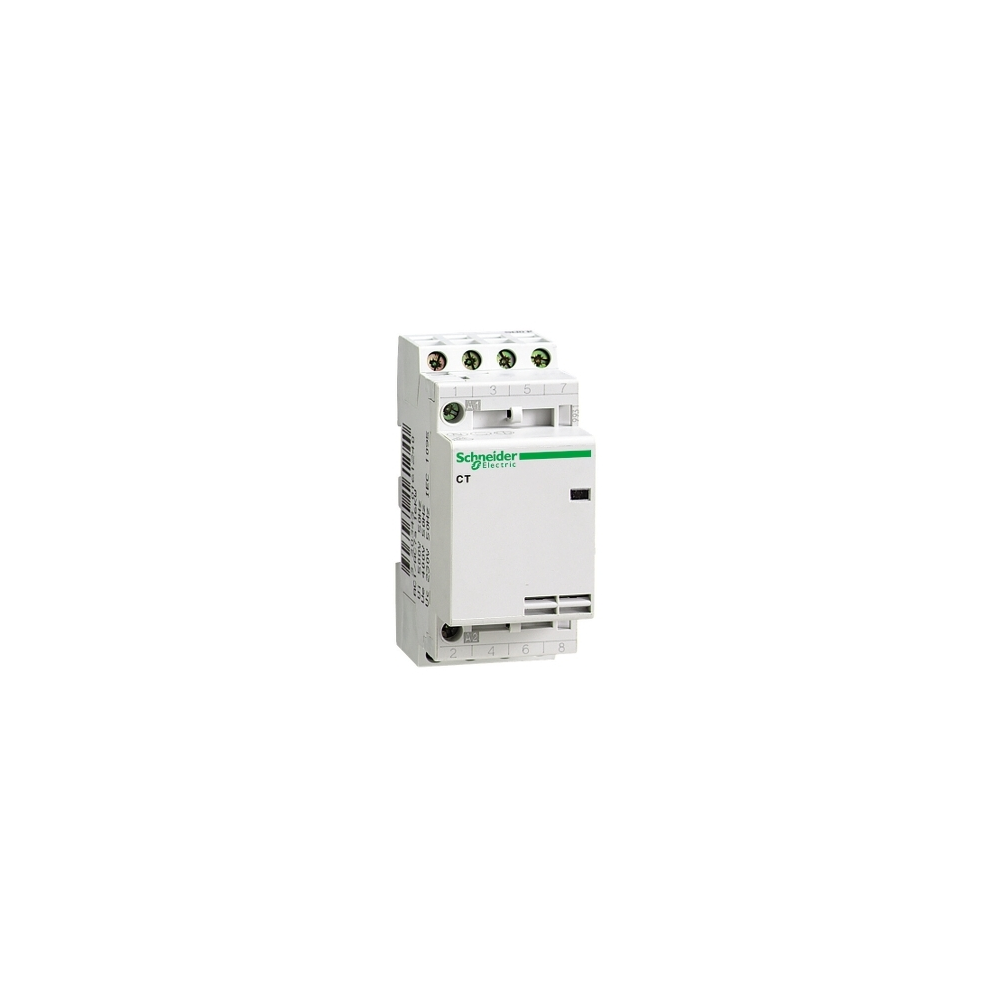

Contactor CT, 4 poli, 4NC, 40A, 220-240VCA, 15969, Schneider
Stoc magazin: 1 buc
Termen livrare: 24-48h
SKU 15969
112.99 Lei
- 14 zile de retur! Detalii
- Descriere
- Fisa tehnica
- Recenzii
Contactor CT, 4 poli, 4NC, 40A, 220-240VCA, 15969, Schneider
*inlocuit cu A9C20847
| Product or component type | Contactor |
|---|---|
| Device short name | CT |
| Device application | Control circuit |
| Poles | 4P |
| [Ie] rated operational current | 40 A AC-7A |
| Pole contact composition | 4 NC |
| Network type | AC |
| control type | Remote control |
| [Uc] control circuit voltage | 220/240 V AC 50 Hz |
| Network frequency | 50 Hz |
|---|---|
| [Ue] rated operational voltage | 400 V AC 50 Hz |
| Maximum power | 10.4 W at 400 V AC |
| Control signal type | Maintained |
| Local signalling | Color indicator |
| Hold-in power consumption in VA | 6.5 VA |
| Inrush power in VA | 53 VA |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 4 |
| Height | 81 mm |
| Width | 54 mm |
| Depth | 60 mm |
| Colour | Grey |
| Mechanical durability | 1000000 cycles |
| Electrical durability | 100000 cycles IEC/EN 61095 40 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 50 Hz AC-7B 30000 cycles IEC/EN 61095 50 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b |
| Connections - terminals | Control circuit: tunnel type terminals2 cable(s) 2.5 mm² flexible Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Power circuit: tunnel type terminals2 cable(s) 10 mm² flexible Power circuit: tunnel type terminals1 cable(s) 25 mm² rigid |
| Product compatibility | Time delay Interference filter Mixed control: impulse/latched Auxiliary contact |
| Compatibility code | CT |
