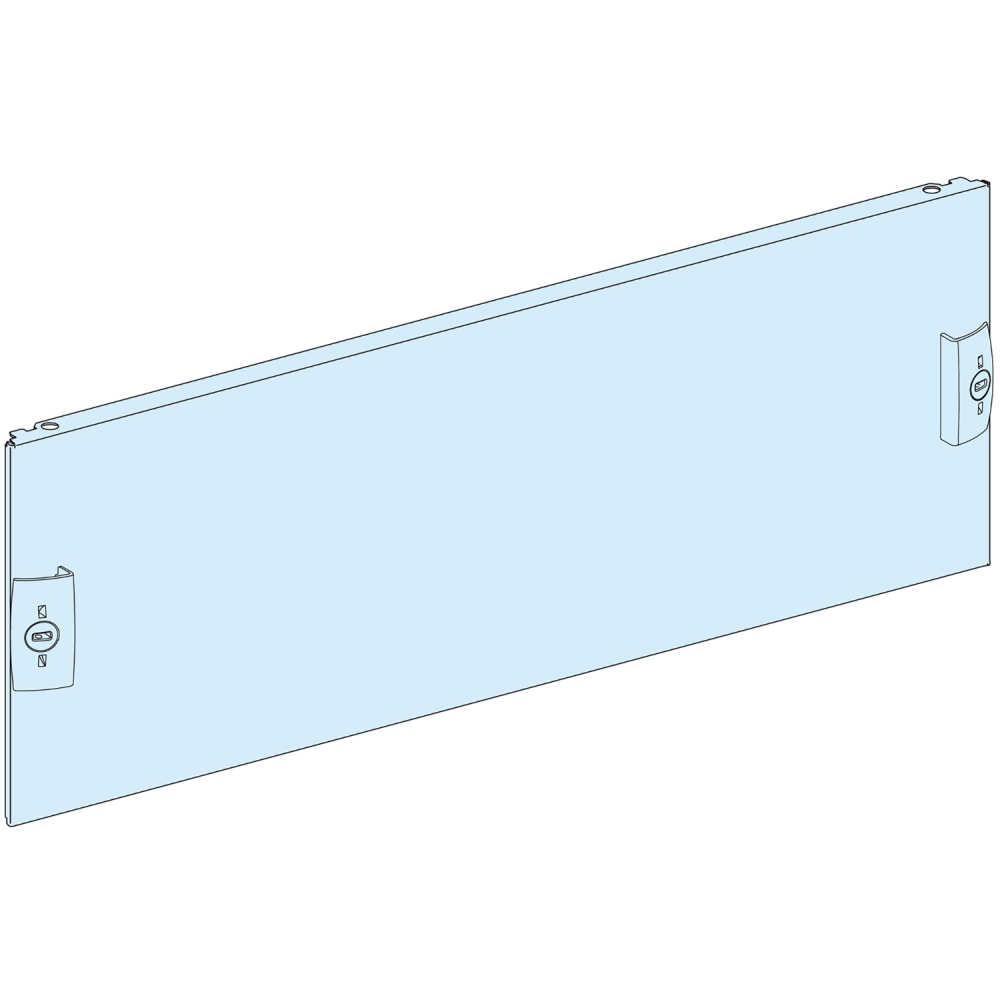

Placa frontala simpla W600,W650 2M, Schneider Electric 03802
Stoc magazin: 31 buc
Termen livrare: 24-48h
SKU 03802
- 14 zile de retur! Detalii
- Descriere
- Fisa tehnica
- Recenzii
Placa frontala simpla W600,W650 2M, Schneider Electric 03802
Compatibil cu seria Schneider PrismaSeT (PrismaSeT G)
| Range | Prisma |
|---|---|
| Range of product | Prisma G Prisma P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | Prisma Prisma G enclosure Prisma Prisma Pack 250 enclosure Prisma Prisma P cubicle |
| Type of front plate | Plain |
| Enclosure/cubicle description | Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm Pack enclosure - width 555 mm Pack enclosure - width 600 mm |
|---|---|
| Number of vertical modules [50 mm] | 2 |
| Standards | IEC 61439-2 IEC 61439-1 |
| Product certifications | ASEFA |
| Material | Steel |
| Surface finish | Smooth Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9001) |
| Height | 100 mm |
| Width | 500 mm |
| Net weight | 0.48 kg |
| Quantity per set | Set of 1 |
| functional unit | 600 mm Prisma G floor-standing enclosure 600 mm Prisma G wall-mounted enclosure 650 mm 400 mm Prisma P cubicle 600 mm Prisma Pack 250 Pack enclosure |
Plain front plate for Prisma. It is compatibility with Pack 160, Prisma G and Prisma P. It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment. It has matt or smooth surface finish and white (RAL 9001) colour with steel material. It is suitbale for 2 50-mm vertical modules. Sold in lots of 1 unit. IK07 conforms to EN/IEC 62262. It is certified by ASEFA. It is compliant with both IEC 61439-1 and IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
